For over 25 years EPT has offered PVC products formulated with ethylene interpolymer alloy (EIA), now being offered by  E².  EIA is a high-performance DuPont Elvaloy®/ketone ethylene ester (KEE). XTRM Ply® EIA/KEE is available in both NSF Potable Water and Non-Potable Water grades.  This polymer allows our XTRM Ply EIA/KEE to achieve some of the highest levels of chemical protection in the Geomembrane  (Primary/Secondary) containment industry. XTRM Ply EIA/KEE has been used for a variety of applications around the world. From wastewater lagoons to hazardous waste impoundments, we have the knowledge and experience to help meet your needs.

XTRM Ply EIA/KEE products are manufactured in both reinforced composites and unreinforced film and provided in industry-standard thicknesses 30, 36 and 45 mil. Greater thicknesses are offered upon request.  Widths are available up to 120″.

BENEFITS

  • NFS 61 - Potable Water Grade
  • BPA Free
  • Up to 20 year Warranty Available
  • Weldable (By Heat, R.F., and Wedge)
  • High abrasion resistance
  • Excellent outdoor service life
  • Industry Leading chemical resistance
  • High resin to fabric ratio
  • High operating temperatures (250°F continuous / 275°F intermitten)
  • Available in widths up to 120″

RECOMMENDED APPLICATIONS

  • HPK - Reinforced with a knit polyester fabric and ideal for mild dynamic applications
  • HP - Reinforced with a higher strength knit polyester fabric and suitable for moderate applications
  • HPL - Reinforced with a woven polyester fabric for your most demanding and critical applications
  • HPLX - Reinforced with a woven high tenacity polyester fabric to give superior tensile and tear tests that meet and exceed industry standards

XTRM Ply® EIA/KEE SERIES

NAME
APPLICATION
FABRIC TYPE
COATING
WEIGHT (OZ)
MORE INFO
EPT XTRM PLY HPL 30oz
Primary and Secondary Containment
Polyester 1000 Den
EIA/KEE
7087-30120-559
Primary and Secondary Containment
Polyester 1000 Den
EIA/KEE
30
7087-30120-577
Primary and Secondary Containment
Polyester 1000 Den
EIA/KEE
38
7087-30120-514
Berm Liners, Primary and Secondary Containment
Nylon 1690 Den
EIA/KEE
30
7087-30120-589

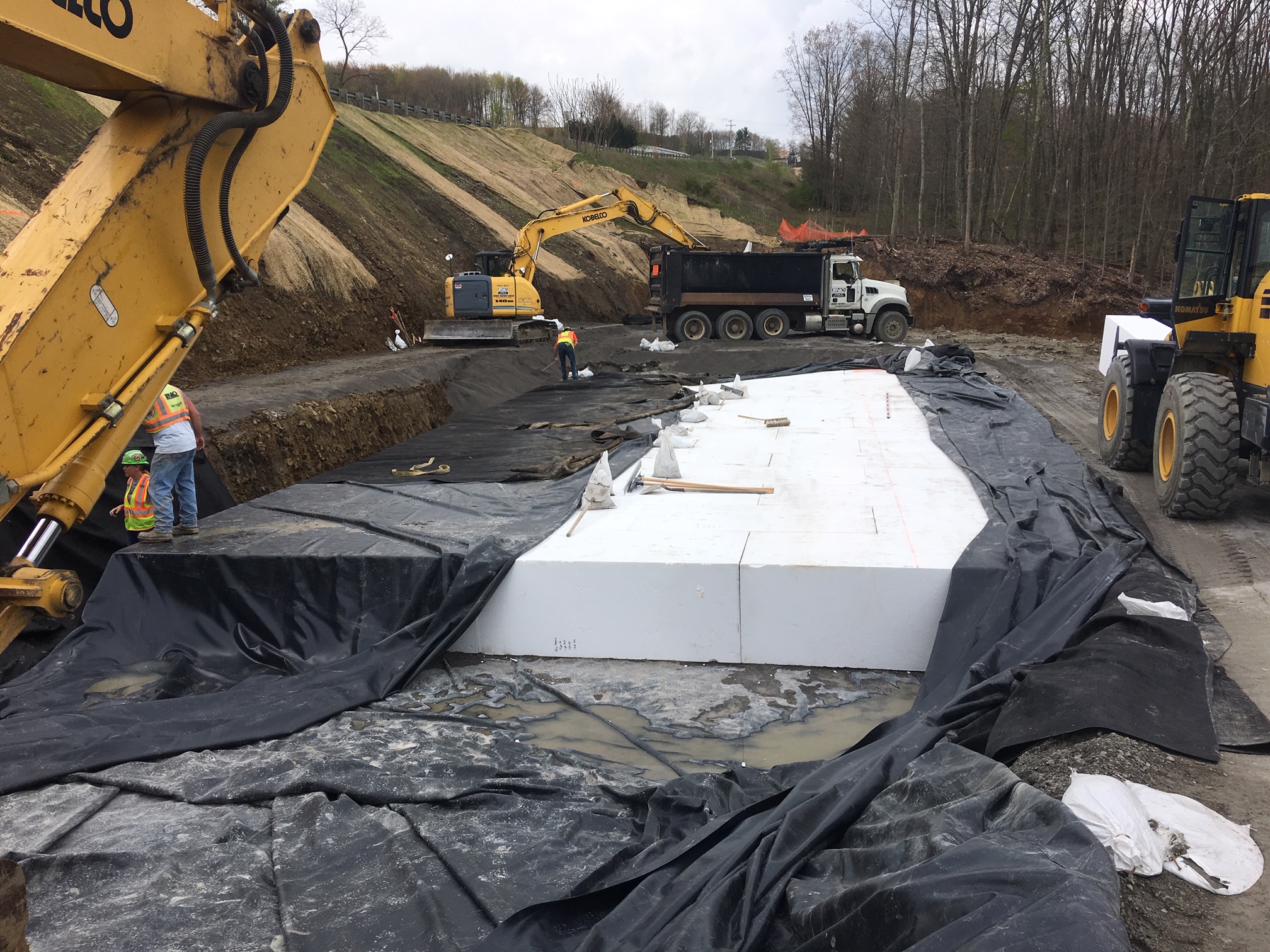

EPS Geofoam Protection
Polyester 1000 Den
EIA/KEE
38
9234 – 025060
Potable Water
Polyester 1000 Den
EIA/KEE
30
